Product Description

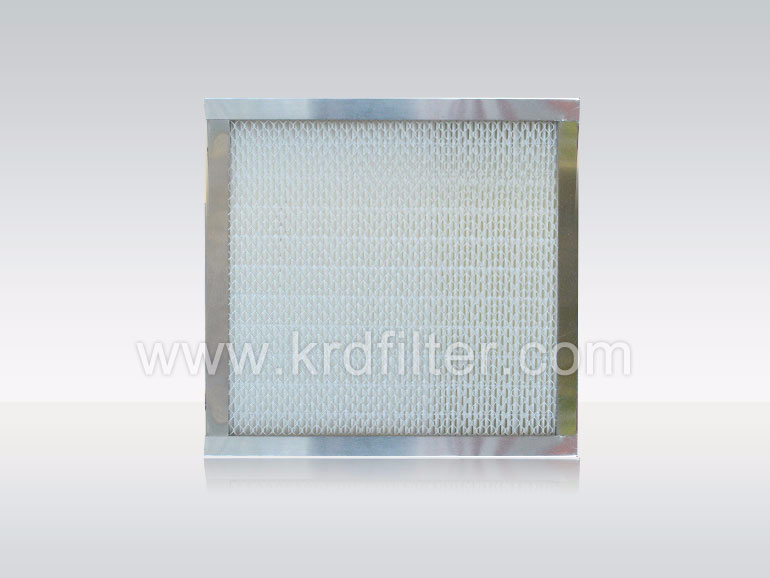

This kind filter uses special superfine glass fiber paper and it is sepatated by hot-melt adhesives. Moreover, the upstream and downstream side are covered with protective metal mesh. The filter efficiency ranges from 95% to 99.995% which can meet the special requirement of air cleanliness for high-tech clean rooms, clean blench and clean air device.
Features
Maximum Temperature: 80°C
Maximum Humidity: 100% RH
Frame: Aluminum, Aluminium Alloy, Cardboard
Filter Media: glass fiber filter paper, pp filter media
Sealant: Polyurethane
Separator: EVA hot melt
Gasket: Neoprene
Detection is carried out with automatic leakage detection system.
Applications
It is widely used for end filtration of clean room with class 10000-100 and clean system in fields of electricals, light device, foods, medicals and precision machinery and HVAC( Heating, Ventilation and Air Conditioning ) application.
Advantages
1. Simple structure
2. Low price
3. High temperature resistance
4. High filter precision.
Dimensions | Net media | Initial resistance at 0.45m/s (Pa) | Airflow |
mm | H13 | H14 | U15 | H13 | H14 | U15 | M³/h |
305x305x70 | 2.5 | 2.8 | 3.2 | 120 | 135 | 160 | 100-250 |
305x610x70 | 5 | 5.6 | 6.4 | 120 | 135 | 160 | 300-500 |
610x610x70 | 10.2 | 11.2 | 12.9 | 120 | 135 | 160 | 600-1000 |
762x610x70 | 12.7 | 13.9 | 16.1 | 120 | 135 | 160 | 750-1250 |
915x610x70 | 15.4 | 16.8 | 19.4 | 120 | 135 | 160 | 900-1500 |
1219x610x70 | 20.7 | 22.4 | 25.9 | 120 | 135 | 160 | 1200-2000 |
305x305x90 | 3.2 | 3.5 | 4.1 | 85 | 100 | 120 | 100-250 |
305x610x90 | 6.5 | 7 | 8.1 | 85 | 100 | 120 | 300-500 |
610x610x90 | 13.1 | 14.1 | 16.5 | 85 | 100 | 120 | 600-1000 |
762x610x90 | 16.2 | 17.7 | 20.7 | 85 | 100 | 120 | 750-1250 |
915x600x90 | 19.7 | 21.3 | 24.8 | 85 | 100 | 120 | 900-1250 |
1219x610x90 | 26.5 | 28.5 | 33.1 | 85 | 100 | 120 | 1200-2000
|
